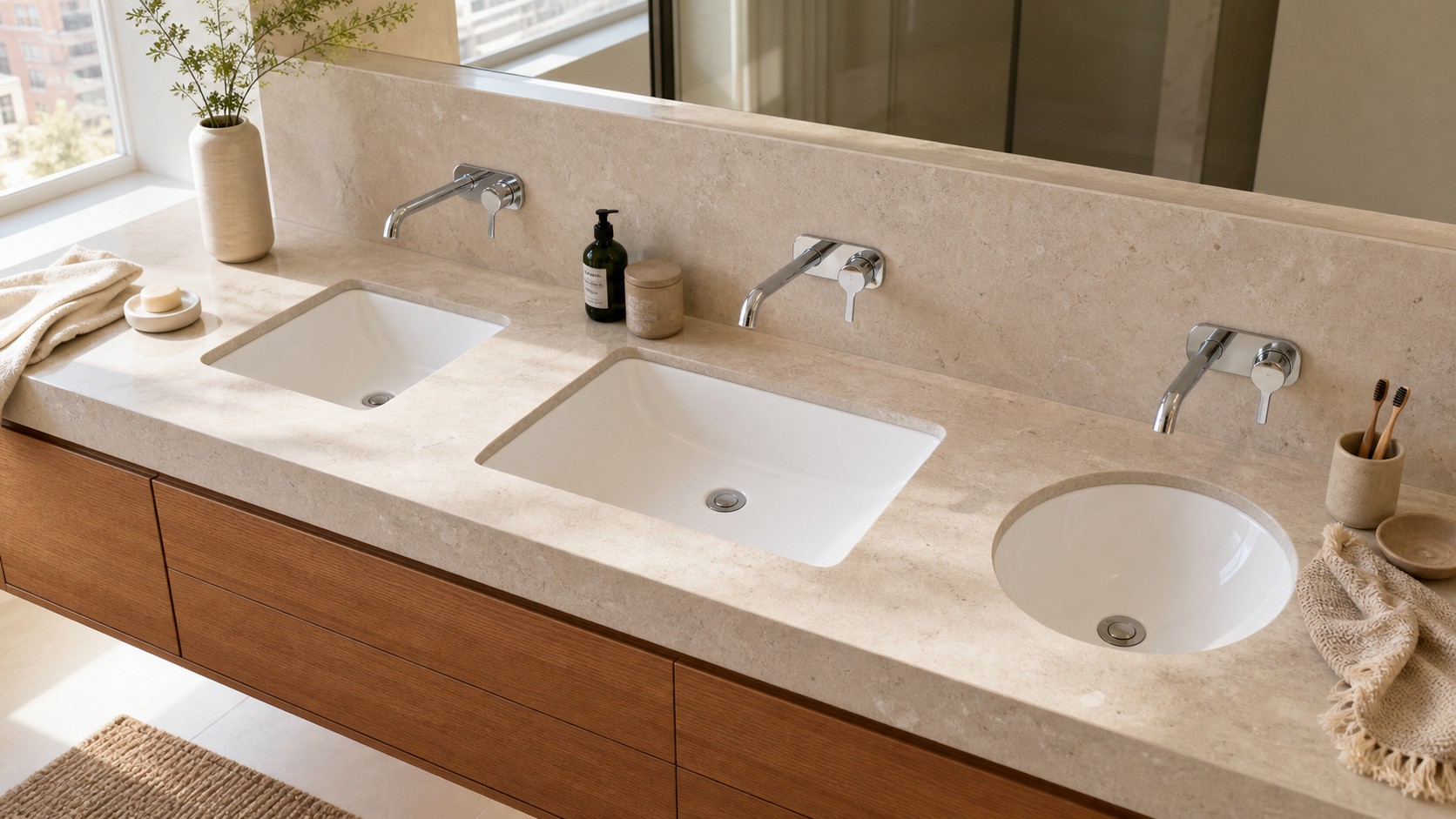

An undermount bathroom sink creates a clean vanity surface, but size selection cannot stop at the catalogue width. Importers, stone fabricators and project buyers must coordinate the fired ceramic basin with the exact cutout, visible reveal, support hardware, faucet, drain and cabinet. This guide explains how to choose an undermount bathroom sink size, approve the opening and control repeatable fit for hotels, apartments and furniture programmes.
Key takeaways
- Control the complete assembly: basin, template, reveal, support and plumbing must be approved together.
- Use real model data: external size does not equal the finished countertop opening.
- Dry-fit production ceramics: test representative basins before releasing all stone or cabinet work.
01 PRODUCT DEFINITION
What is an undermount bathroom sink?
An undermount bathroom sink is fixed below a countertop so the counter edge forms the visible opening. The ceramic rim is hidden underneath instead of resting on top. This creates an uninterrupted vanity surface and makes it easy to wipe splash water from the counter into the bowl. For importers, stone fabricators and hotel buyers, however, the product is not only a bowl. It is a coordinated assembly of ceramic, cutout, reveal, support, sealant, faucet and drain.
Undermount should not be confused with drop-in installation. A drop-in basin carries on a visible rim above the top, while an undermount basin depends on an approved structure below. It also differs from a countertop vessel basin, which stands above the worktop. These installation types require different templates and cannot be swapped after the stone has been cut.
The commercial advantage is a clean, premium appearance that works across hotels, apartments and furniture ranges. The technical risk is that a small mismatch between the approved ceramic and the fabricated opening remains visible around the entire bowl. Buyers should therefore treat the sample basin and current template as controlled project documents.
02 SIZE & SHAPE
Which undermount bathroom sink size should you choose?
Start with the cabinet envelope, not a catalogue width. Record internal cabinet width and depth, drawer position, countertop thickness, backsplash, faucet setback and trap space. Then compare external ceramic dimensions, internal bowl volume and underside profile. A compact basin may preserve storage in a narrow guestroom, while a deeper model gives more comfortable hand clearance but occupies more of the cabinet.

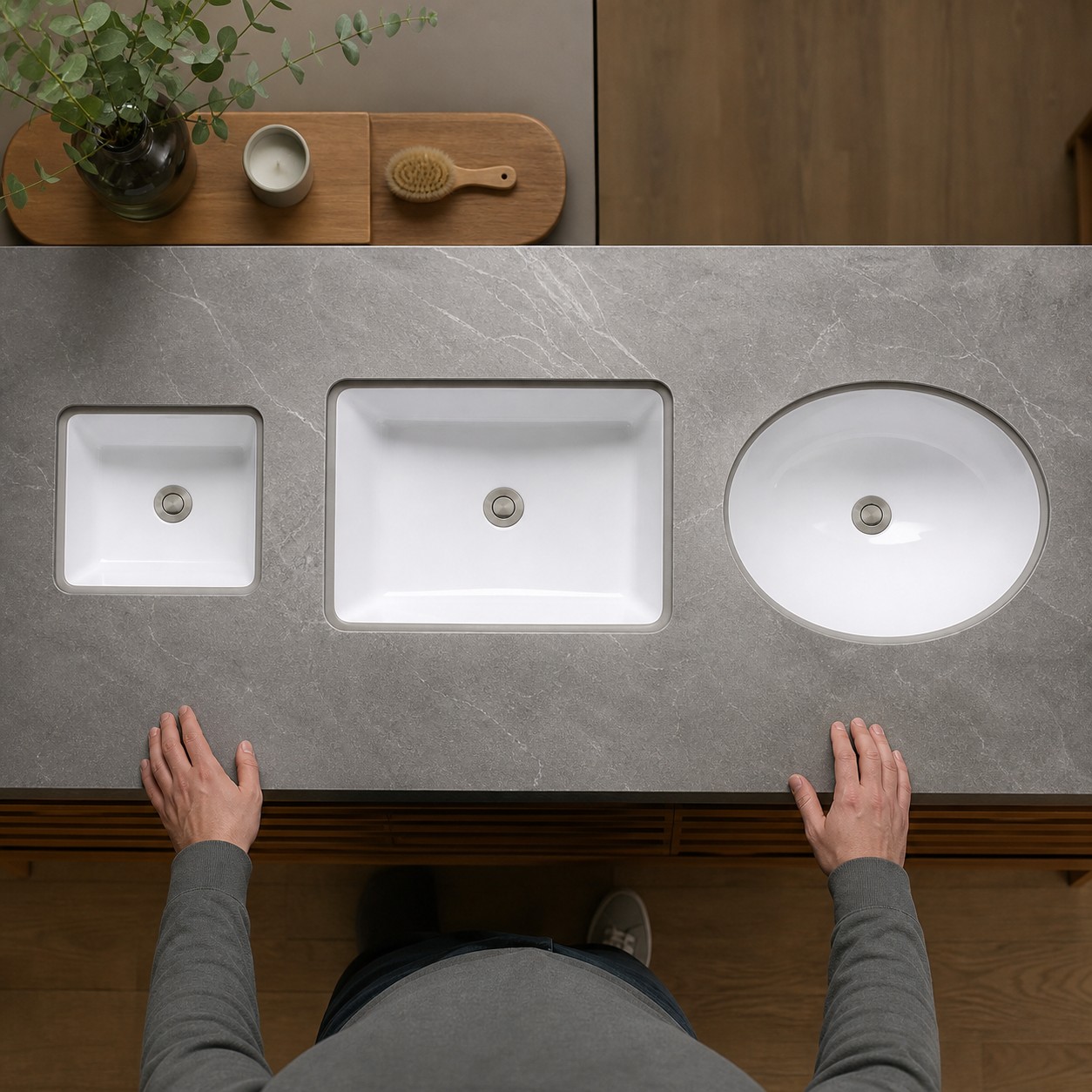

Chengda's range illustrates the difference. UB0116 measures 415 × 285 × 160 mm and suits shallow furniture. UB0221 measures 530 × 350 × 180 mm for a broader rectangular wash area. UB0418 is an oval 480 × 390 × 195 mm model. All three are undercounter basins without faucet holes, with overflow and a 45 mm drain opening. These are finished-product dimensions; the countertop opening must come from the approved template for the exact model.

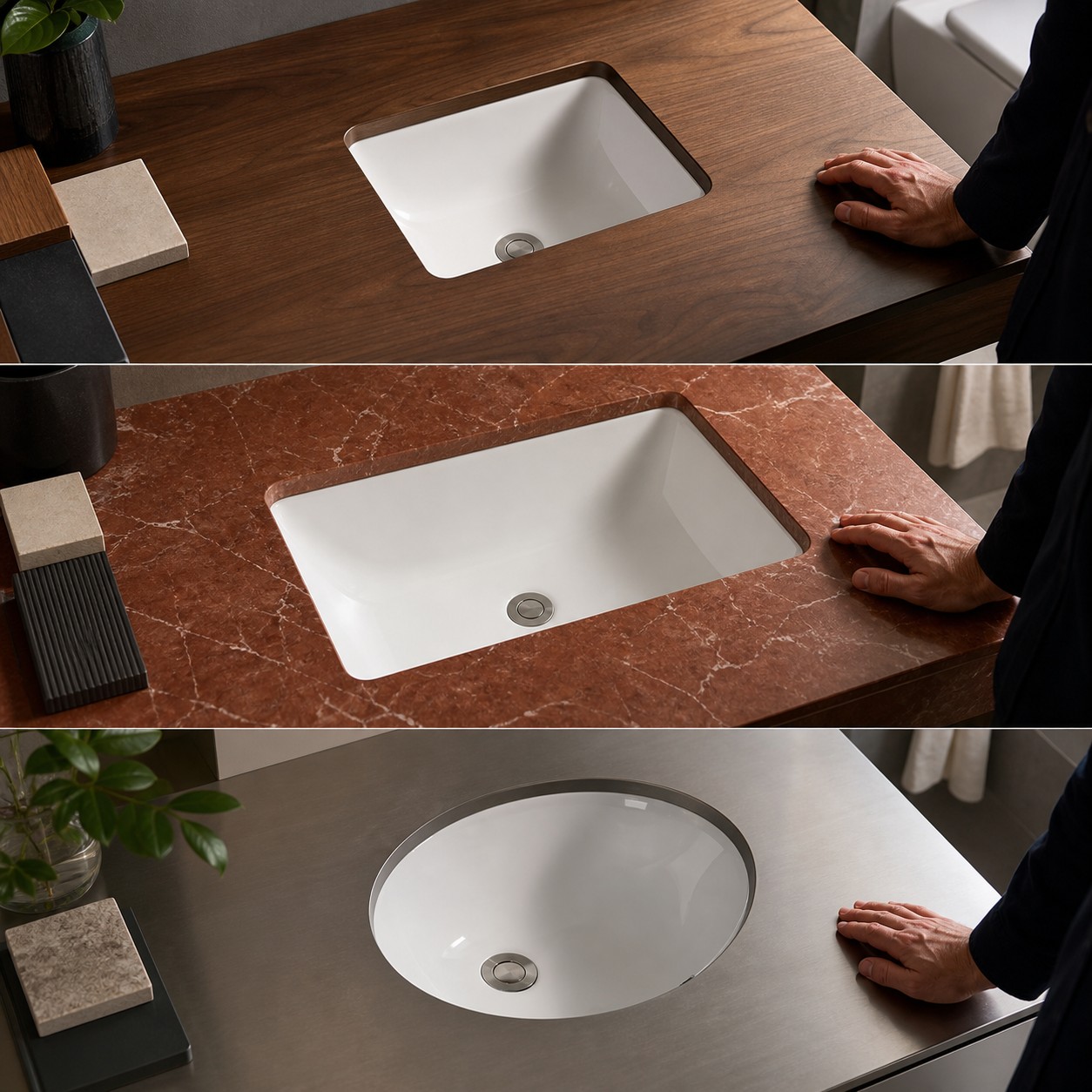

Do not create a product family by scaling one drawing. Corner radii, bowl slopes, overflow position and rim width can change between models. Ask which sizes share a design language and check physical samples together under the same light. For export catalogues, show metric and inch conversions, but keep one metric manufacturing master to avoid rounding conflicts.
03 CUTOUT & REVEAL

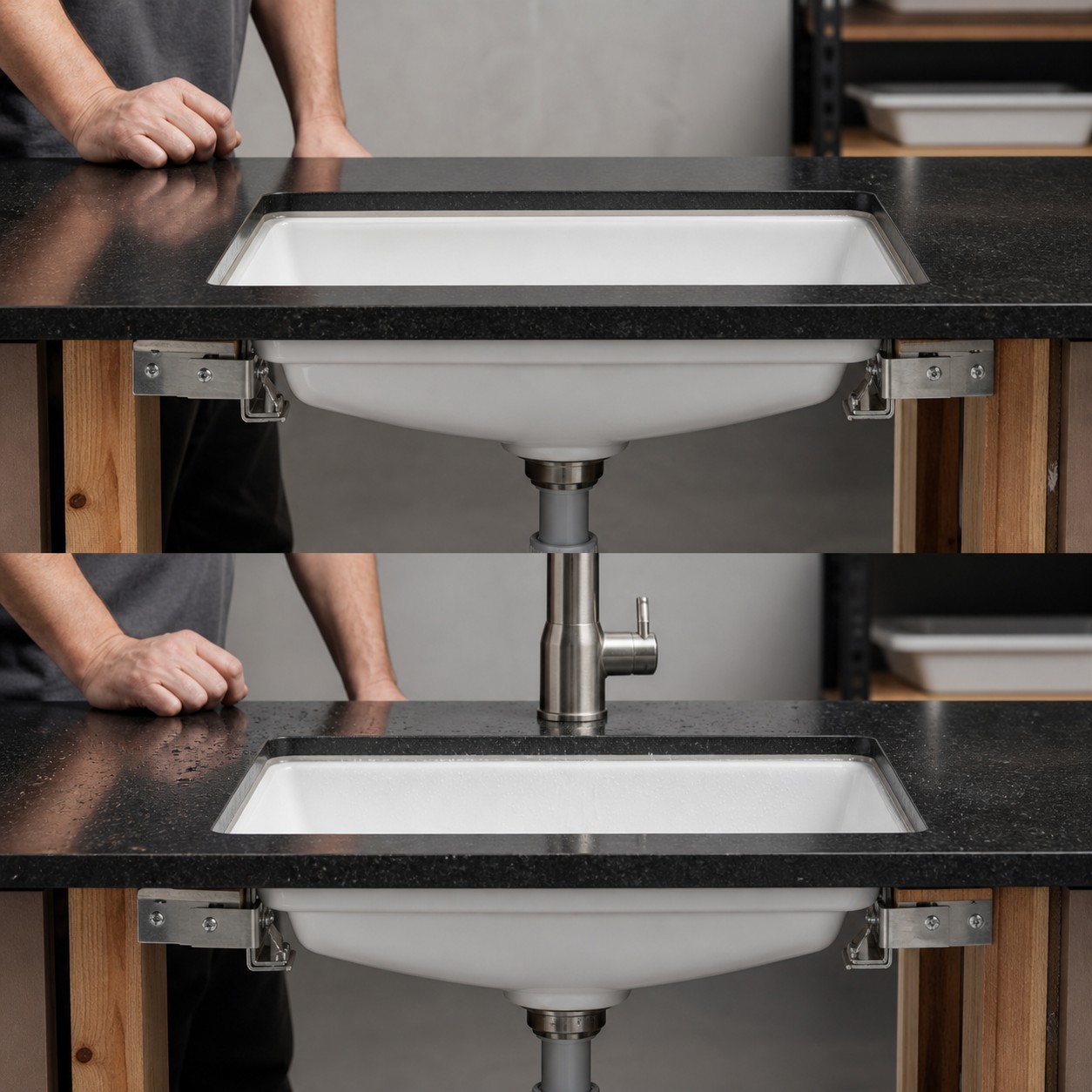

How do cutout templates and sink reveals affect fit?
A cutout template locates the opening and defines its finished shape. It is not simply the basin's outer dimension minus an estimated margin. Fabricators may use a positive reveal, where a narrow part of the basin rim is visible; a zero reveal, where counter and bowl align; or a negative reveal, where the countertop slightly overhangs the bowl. The correct choice depends on the model, edge finish, cleaning preference and approved project detail.
Use the current template revision and confirm whether it represents the finished edge or the cutting line before tool compensation. Check the front setback, faucet position and wall clearance on a full vanity mock-up. A technically accurate opening can still fail if the tap base collides with the bowl below, the backsplash leaves no cleaning space or the drain lands over a drawer rail.
Because fired ceramic has normal variation, dry-fit several production-representative basins against the project gauge before releasing all stone. The reveal should remain visually even without grinding the ceramic. If a fabricator traces one random basin and treats that trace as the master, later replacement units may not fit consistently.
04 SUPPORT & SEALING
What safely supports an undermount ceramic basin?
An undermount basin needs a model-appropriate mechanical support method such as clips, rails, brackets or a frame specified for the countertop and cabinet. Sealant closes the joint and helps prevent water entry, but it should not be presented as the only structural support for a heavy ceramic fixture. The stone supplier, cabinet maker and installer must agree who provides each component and where it anchors.
Support points must carry the ceramic body without concentrating force on a thin edge. Access is also important: the installer needs room to tighten hardware, connect the waste and inspect the joint. In a drawer vanity, support rails and trap position should be coordinated before cabinet production. Do not drill stone or engineered surfaces outside the material supplier's approved method.
During the mock-up, fill and drain the basin, check movement and inspect for leakage. Verify that cleaning chemicals and sealant are compatible with the countertop and glaze. Provide installation instructions for the destination market and require installers to follow local building and plumbing rules.
05 FAUCET & PLUMBING
How should the faucet, overflow and trap be coordinated?
These Chengda UB models have no faucet hole, so the mixer must mount on the countertop or wall. Confirm spout reach, outlet height and landing point with the real bowl. A faucet placed too far back may hit the rear slope and splash; one placed too far forward can reduce hand space. Check base diameter, shank length and fixing-nut clearance below the top before drilling.
Specify the drain hole, waste type, overflow compatibility, trap and destination-market thread. A basin with an overflow normally needs a compatible slotted waste so overflow water can reach the drain. Map the assembled waste body and trap against shelves and drawers, not only the visible drain centre.
Run water through the approved faucet and basin combination. Observe drainage, residual water, splash at normal flow, overflow operation and leakage. Photograph the accepted assembly and keep its fitting codes in the order file so a later faucet substitution does not quietly change performance.
06 PROJECT APPLICATIONS

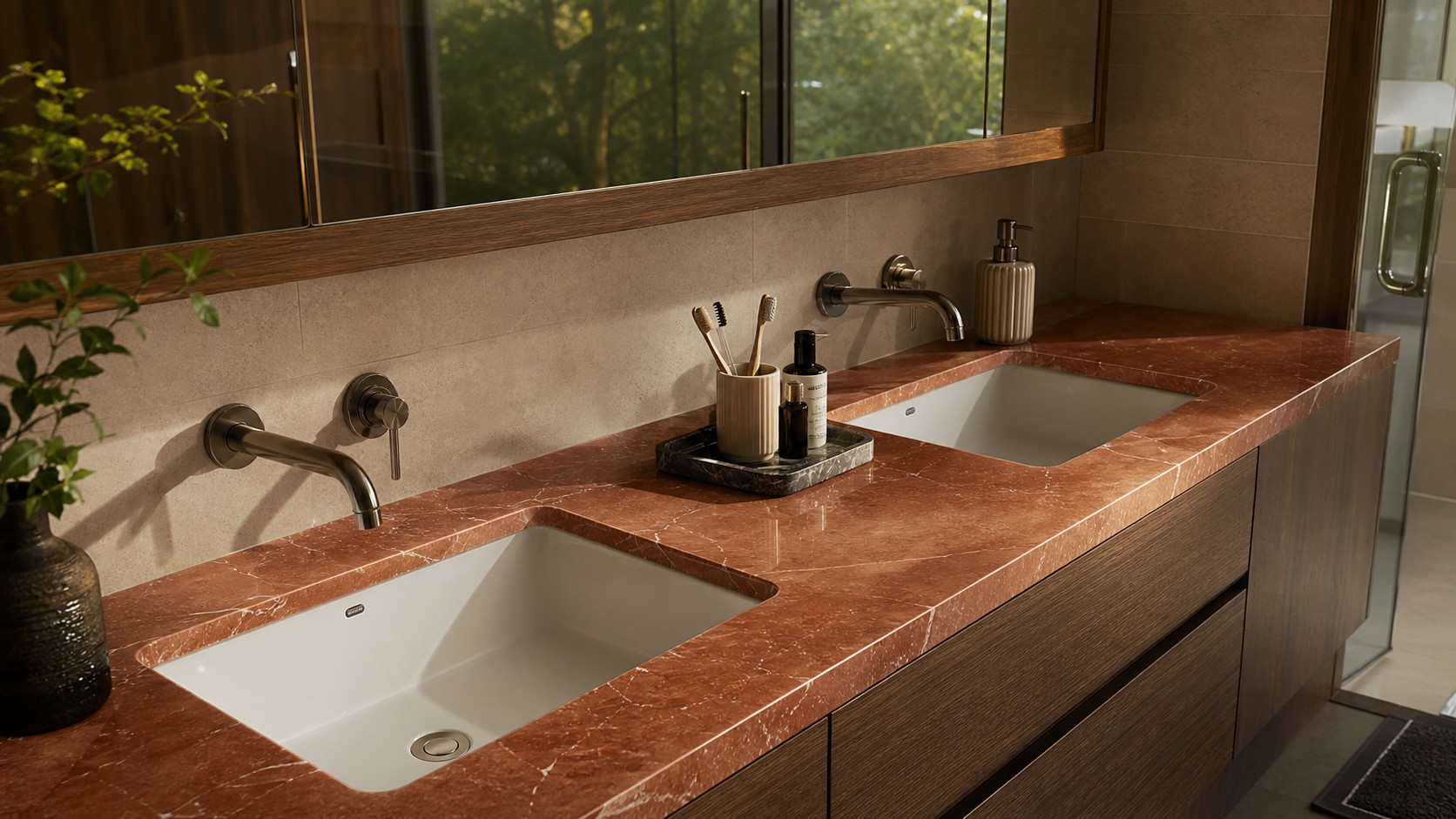

Where do undermount bathroom sinks work best?
Undermount basins are strong choices for hotel vanities, apartment bathrooms, premium retail furniture and commercial counters where a clean surface and easy wipe-down matter. Compact models help preserve counter and cabinet space in guestrooms. Larger rectangular bowls suit family apartments, while an oval bowl can soften a stone-heavy interior.
For multi-room projects, standardise the basin, template, faucet setback and support detail by room type. Accessible rooms require separate verification against the applicable local code; do not assume that a standard vanity becomes compliant because its counter height looks low. The project team must check clear floor space, knee and toe clearance, exposed pipe protection and operable controls for the exact assembly.
Renovation needs extra care. Existing stone openings, cabinet frames and plumbing centres may restrict the replacement choice. Measure the finished opening and underside access, then compare it with an approved sample rather than ordering by the old basin's sales name.
07 QUALITY CONTROL

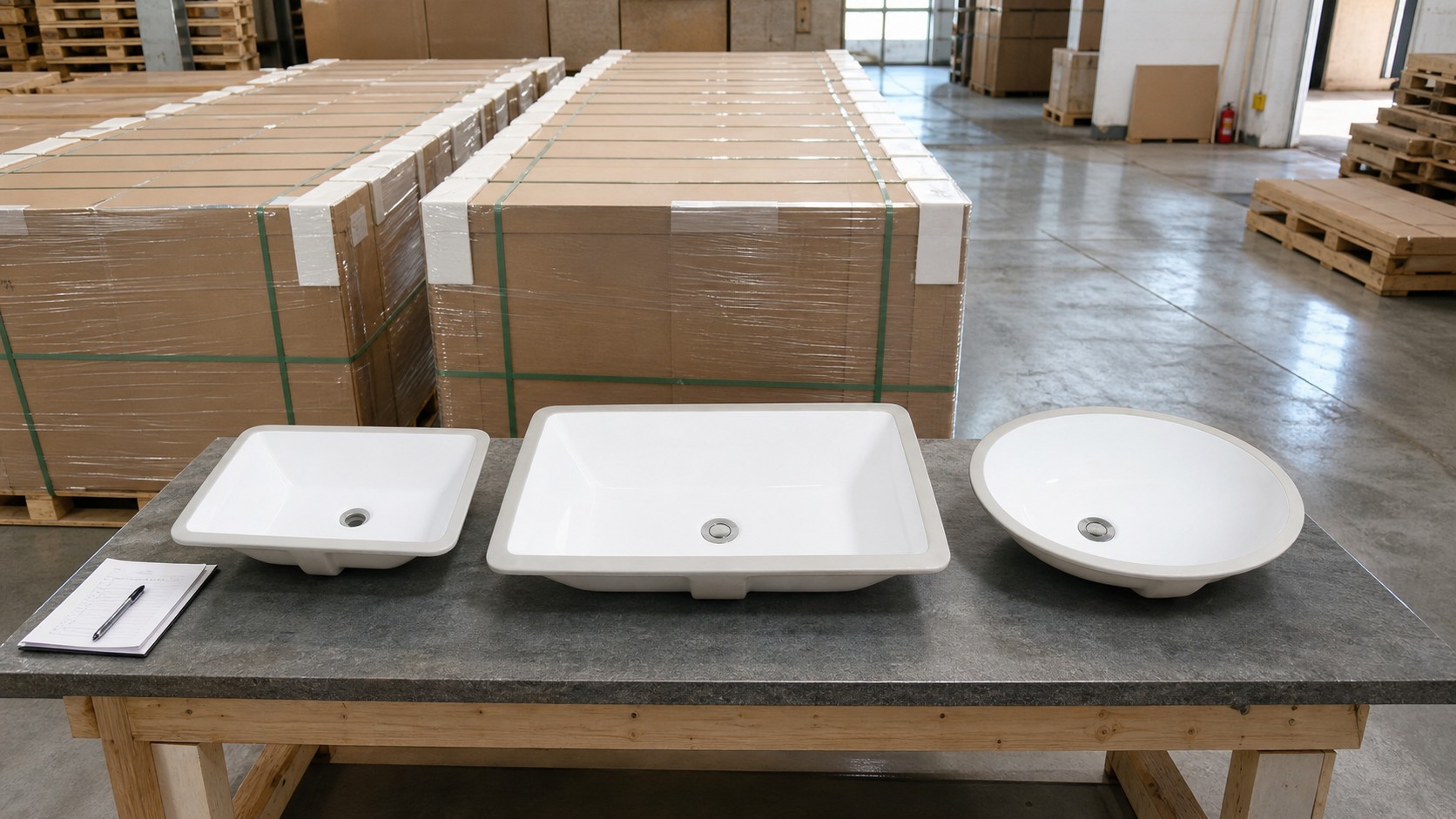

What should buyers inspect before shipment?
Inspect external dimensions, rim profile, bowl symmetry, drain and overflow position, glaze coverage, visible defects and warpage using the agreed method. The most important functional check is the fit against the approved countertop gauge or template. A basin may look attractive on a table yet create an uneven reveal once installed.
Agree which ceramic surfaces are visible after installation and classify appearance zones accordingly. Check colour consistency across a batch under stable lighting, especially when several basins share one long vanity. Water-test random assembled units and record the result against the order and model revision.
Packaging must protect the hidden rim, bowl edge and drain area without allowing ceramic-to-ceramic contact. Validate the actual pack for the actual model. Keep the basin SKU, template revision and carton identity traceable so replacement stock can be matched later.
08 ORDER CONTROL
What belongs in an undermount basin buyer file?
A complete file should include the SKU and revision, product drawing, current cutout template, approved reveal, ceramic tolerance, support method, sealant note, faucet position, drain and overflow data, trap clearance, signed sample, inspection criteria, carton specification and spare policy. Record responsibility for countertop cutting and installation hardware.
Chengda supplies rectangular and oval ceramic undermount basins for importers, bathroom furniture companies and projects. Send the cabinet dimensions, countertop material and thickness, preferred bowl shape, faucet location, target market and quantity. We can shortlist suitable UB models and coordinate samples, drawings, fit checks, quality inspection and export packing.
The safest purchase is not the basin with the most fashionable outline. It is the basin whose ceramic, opening, support and plumbing have been approved together and can be repeated across production.
Lock the complete installation system
Model and revision; external dimensions; bowl profile; cutout template; reveal; ceramic tolerance; countertop material; support hardware; sealant; faucet position; drain and overflow; trap clearance; signed sample; inspection and packing standard.
FAQ COMMON QUESTIONS
Frequently asked questions
What is the most common undermount bathroom sink size?
There is no universal size. Buyers should match the external basin, bowl, cabinet depth, faucet setback, trap and approved cutout rather than select by one nominal width.
Can a fabricator use the basin itself as the cutout template?
A production basin can help verify fit, but the controlled master should be the current approved template or CAD file plus representative ceramic samples and the agreed reveal.
Does silicone alone support an undermount ceramic sink?
Sealant closes the joint, but the basin should also use the mechanical support method approved for its weight, countertop and cabinet.
Where is the faucet installed for these UB models?
UB0116, UB0221 and UB0418 have no faucet hole, so the faucet mounts on the countertop or wall and must be checked for reach, splash and underside clearance.
What is positive, zero or negative reveal?
These terms describe whether the ceramic rim is visible, aligned with the counter edge or slightly covered by the counter. The choice must be approved for the exact basin and template.
What should importers inspect before shipping?
Inspect dimensions, rim profile, glaze, drain and overflow, fit against the approved gauge, water performance, model identity and protective packing.
