A freestanding pedestal basin creates a strong visual feature without a full bathroom cabinet, making it attractive for hotels, restaurants, villas, retail collections and compact washrooms. Yet the clean ceramic column hides several purchasing risks: trap clearance, supply position, tap choice, floor level, fixing access and shipping protection. Importers should specify the complete installed system rather than selecting a pedestal wash basin only from its front photograph.
Key takeaways
- Separate the formats: a modern monolithic column basin and a classic basin-plus-pedestal suite need different drawings, packing and installation checks.
- Rough-in by exact SKU: confirm waste, water supplies, tap and fixing positions against the real internal cavity.
- Trial-install before ordering: use a finished-wall and floor jig to test access, stability, drainage and serviceability.
01 PRODUCT FORMATS
What counts as a freestanding pedestal basin?
The term covers several floor-standing washbasin formats. A classic pedestal suite has a separate basin fixed or restrained at the wall, with a pedestal below that supports or conceals pipework according to the manufacturer’s design. A modern freestanding column basin uses one continuous ceramic form or a visually monolithic assembly from bowl to floor. Some markets also use “floor-standing basin” or “column basin.”
These names are not interchangeable on a purchase order. A two-piece suite needs basin-to-pedestal fit control and may use separate cartons. A monolithic model needs careful control of floor contact, internal access and a tall ceramic body. State the exact configuration, model drawing, supplied fittings and fixing method.
Do not confuse a floor-standing pedestal basin with a countertop vessel basin on a tall stand, or a wall-hung basin with a decorative half pedestal. The visible silhouette may be similar in a styled photograph, but the load path and plumbing package differ.
02 SIZE & CIRCULATION
How do you choose pedestal basin dimensions?
Use the room plan, not only the wall width. Check overall basin width, projection, finished height, bowl opening, usable deck, door swing and standing clearance. A narrow cylindrical basin can look compact while still projecting into the circulation path. A wider oval or rectangular model may provide better hand-washing space and landing area but needs more side clearance.

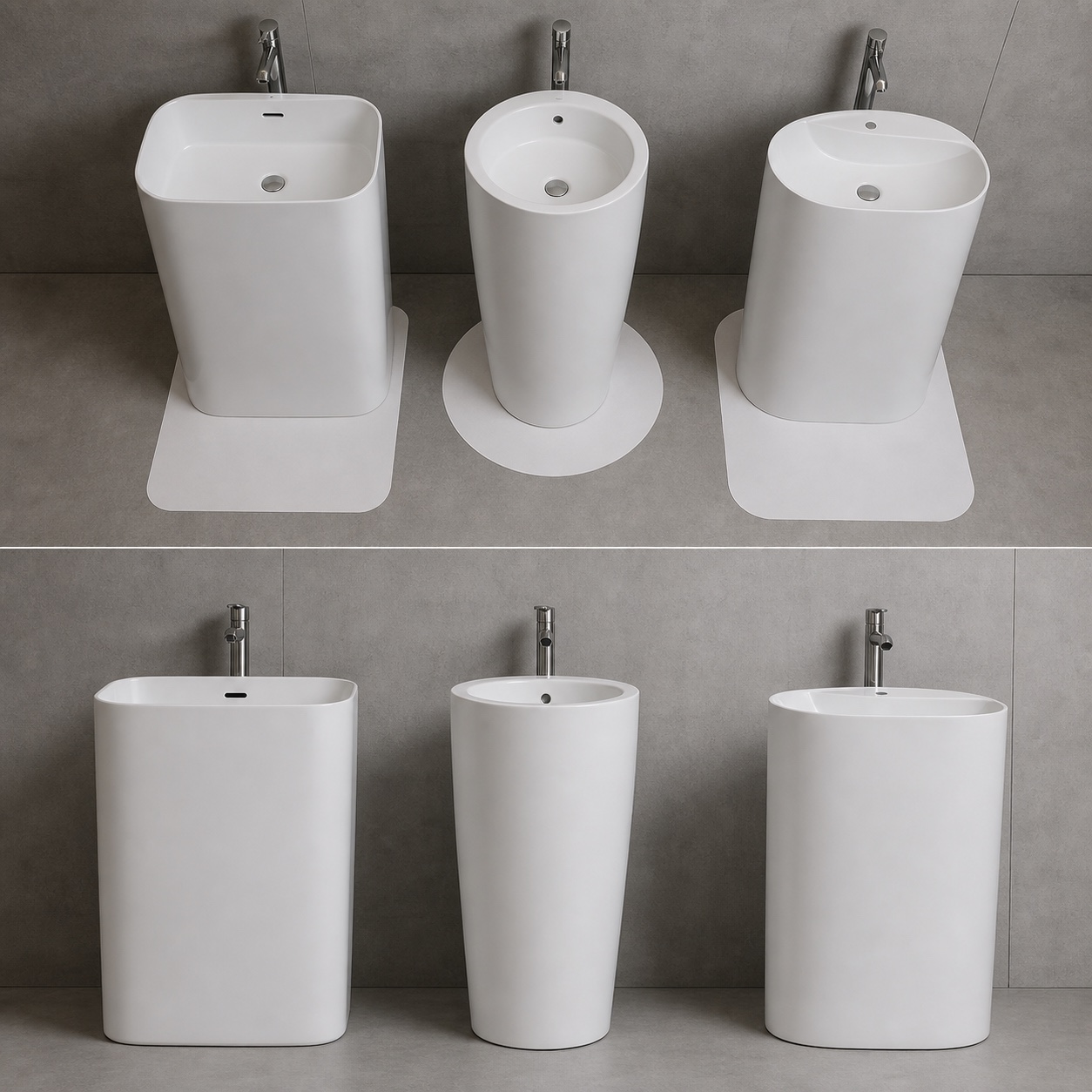

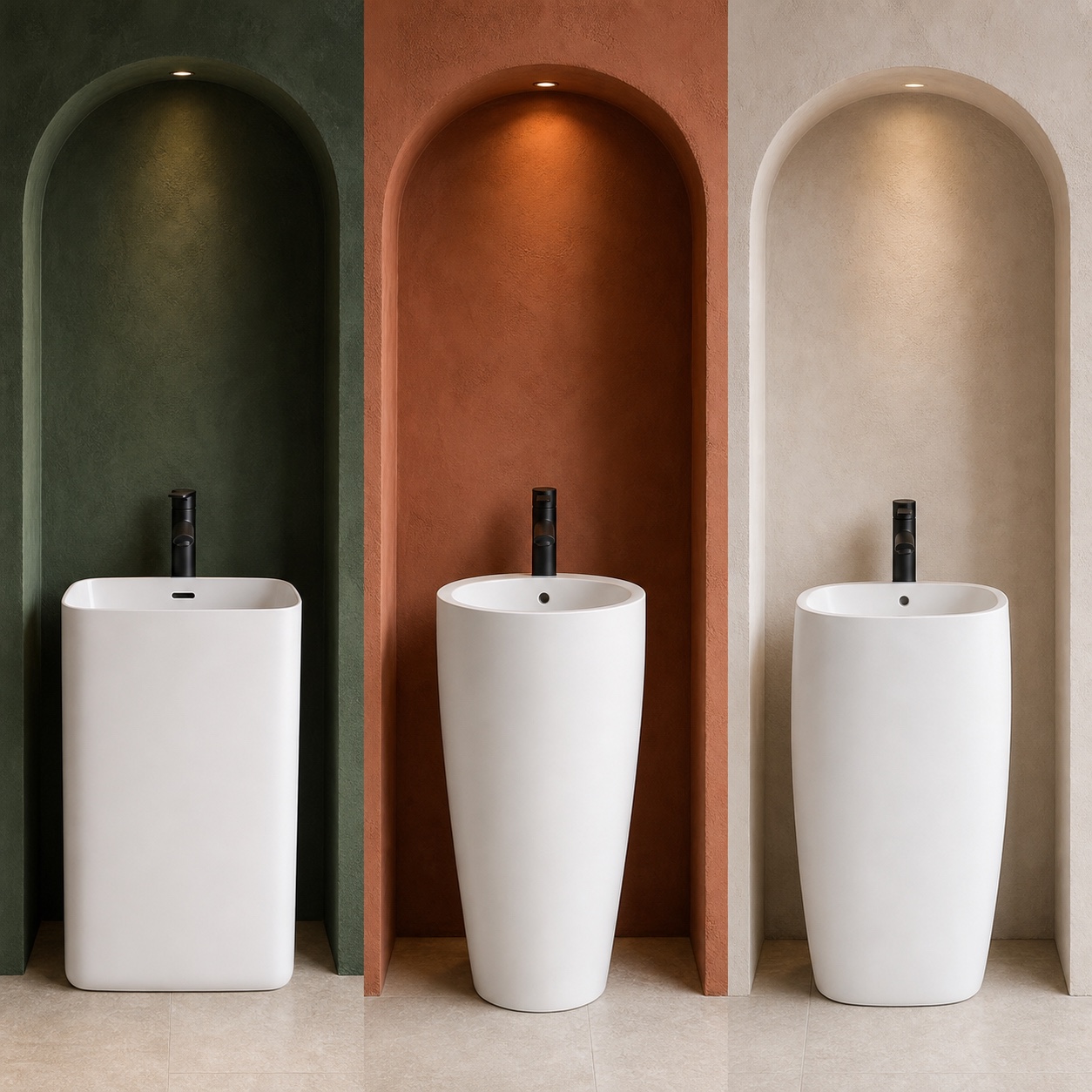

Chengda’s PB range illustrates the variation. PB111 is a compact 375 × 360 × 830 mm column. PB103 is 580 × 420 × 855 mm with a broad rectangular expression. PB207 is 625 × 420 × 845 mm and creates a wider wash surface. These dimensions help shortlist models, but the project must still check the exact rear profile, cavity and rough-in.
Include installation and cleaning access in the plan. The basin may need to move forward during connection, and cleaners need access around its base. In public or hospitality spaces, review circulation, local accessibility rules and tap operation with the project consultant. Do not claim compliance from product width or height alone.
03 PLUMBING ROUGH-IN
Which plumbing dimensions must be confirmed?
Request the exact product drawing and installation instructions. Confirm whether the waste exits to the wall or floor, the centre and diameter of the connection, available trap envelope, hot and cold supply positions, isolation-valve access, tap hose route and the space required to tighten fittings. The clean outer shell can make the internal working area narrower than expected.
Do not copy a generic pedestal-sink rough-in. Even two basins with the same external width can have different drain centres and rear openings. Wall tile, skirting, waterproofing upstand and finished-floor build-up also change the final relationship. All site measurements should reference finished wall and finished floor unless the approved drawing clearly states otherwise.

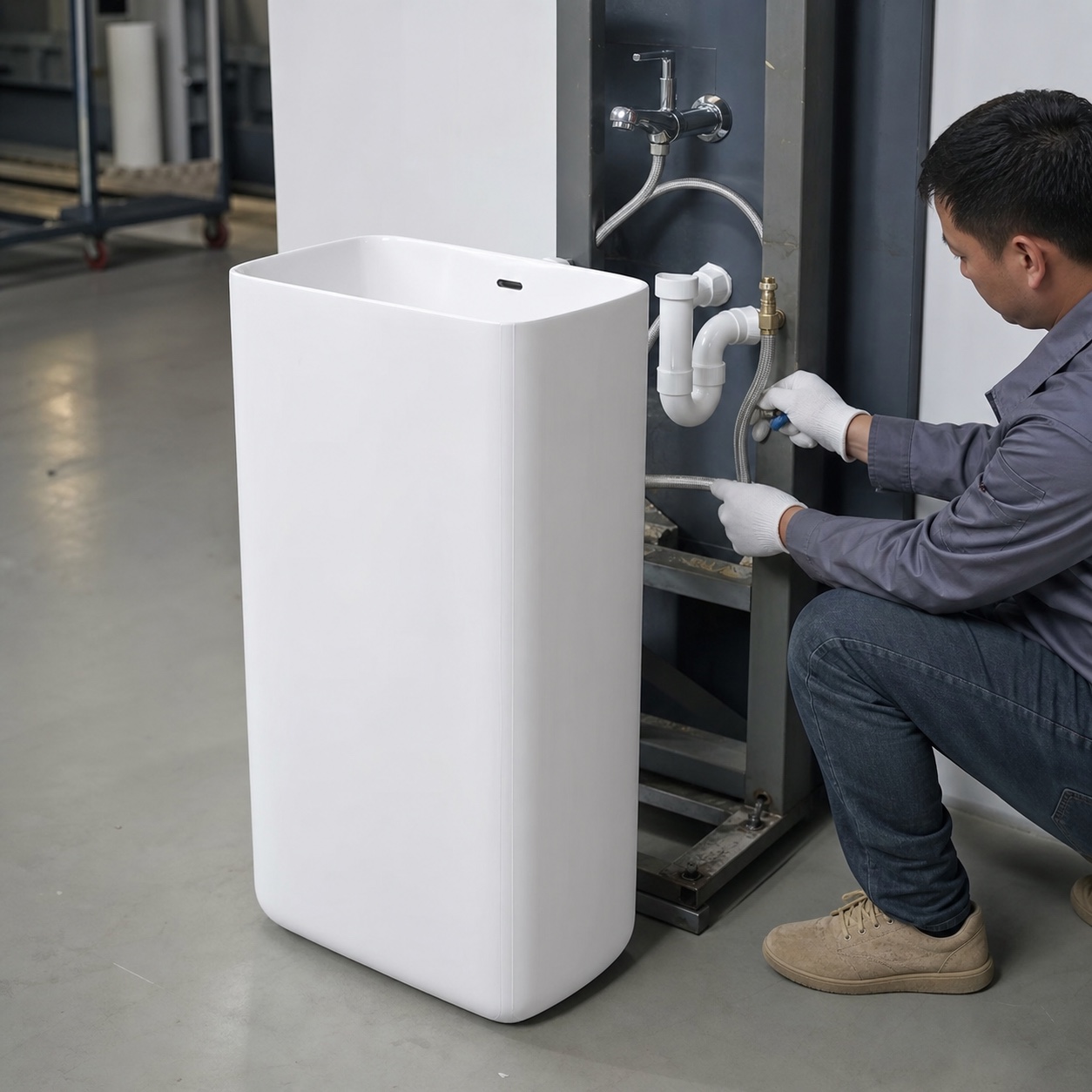

Build a simple installation jig with the specified outlet and water supplies. Dry-fit the basin, connect the real trap and hoses, fill the bowl, drain it, check leaks and then remove the product again. If a technician cannot reach an isolation valve or trap nut during this trial, the site team will not gain extra space later.
04 TAP & WATER FLOW
Which tap works with a freestanding pedestal basin?
The answer depends on the basin. Some models have a tap hole or deck in the ceramic. Others are designed for wall-mounted or floor-mounted taps. The order file must state the actual configuration; image styling is not a technical specification. If the ceramic has a tap hole, confirm diameter, base clearance, shank length and access to the fixing nut.

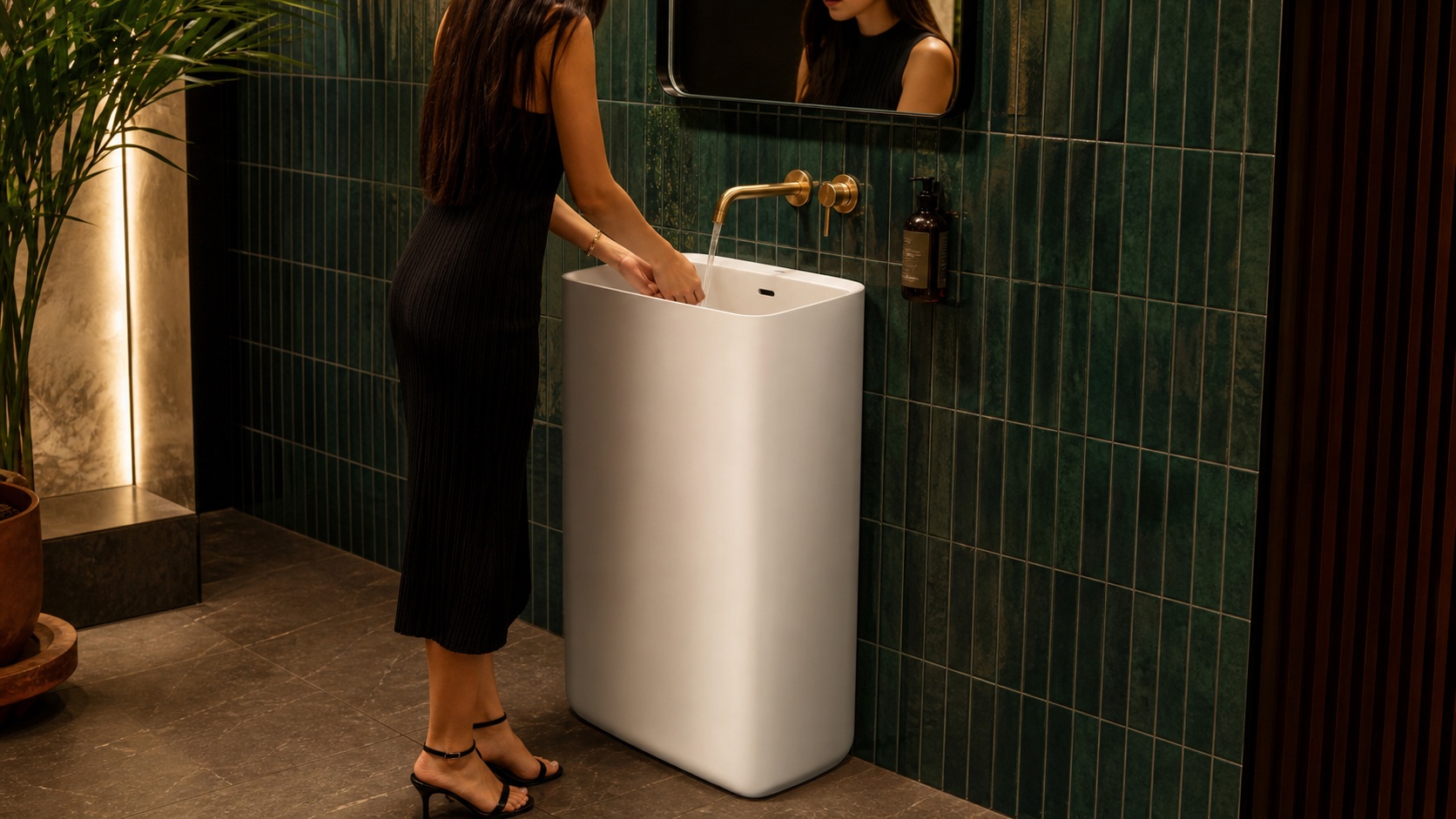

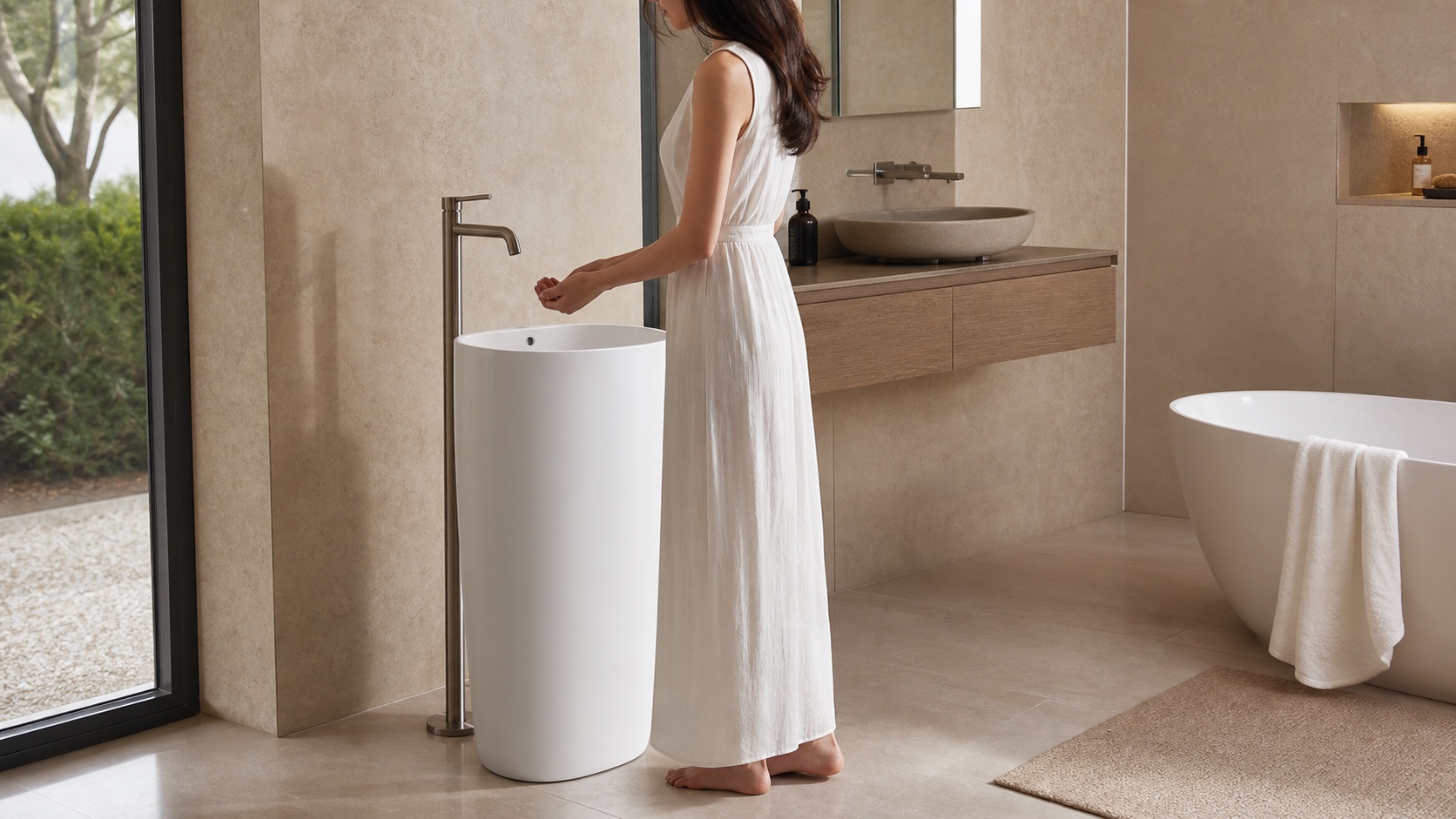

For a wall-mounted tap, coordinate the concealed body before the wall is closed. Check finished spout height, projection and water landing point. For a floor-mounted tap, verify floor structure, waterproofing, supply route and stability. In every case, direct the water stream toward the useful bowl area without hitting the drain cap or inner wall so sharply that water splashes out.
Run a real flow test at the destination-market pressure range. Check hand space, splash, drainage, pooling and whether the mixer handle can operate without striking the wall or ceramic. A dramatic tap can photograph well and still be inconvenient to service.
05 INSTALLATION & SERVICE
How should a floor-standing basin be installed?
Follow the model instructions and project substrate. Depending on design, installation may use floor anchors, wall restraint, brackets and sanitary sealant. The finished floor must be level enough for stable contact, and fixings must suit the slab, waterproofing and wall construction. Never assume sealant alone replaces required mechanical restraint.
Before final tightening, check that the basin is plumb and stable, the rear gap is even and the bowl drains correctly. Protect the glaze from metal tools and avoid over-tightening ceramic fixing points. Seal only the joints specified by the manufacturer so a future service technician can still access connections.
Plan maintenance from the beginning. Isolation valves, trap joints and waste fittings should remain reachable through the designed opening or by a documented removal sequence. Give the project team fitting codes and photographs from the approved installation, not only a beauty image of the finished room.
06 PROJECT FIT
Where do freestanding pedestal basins make sense?

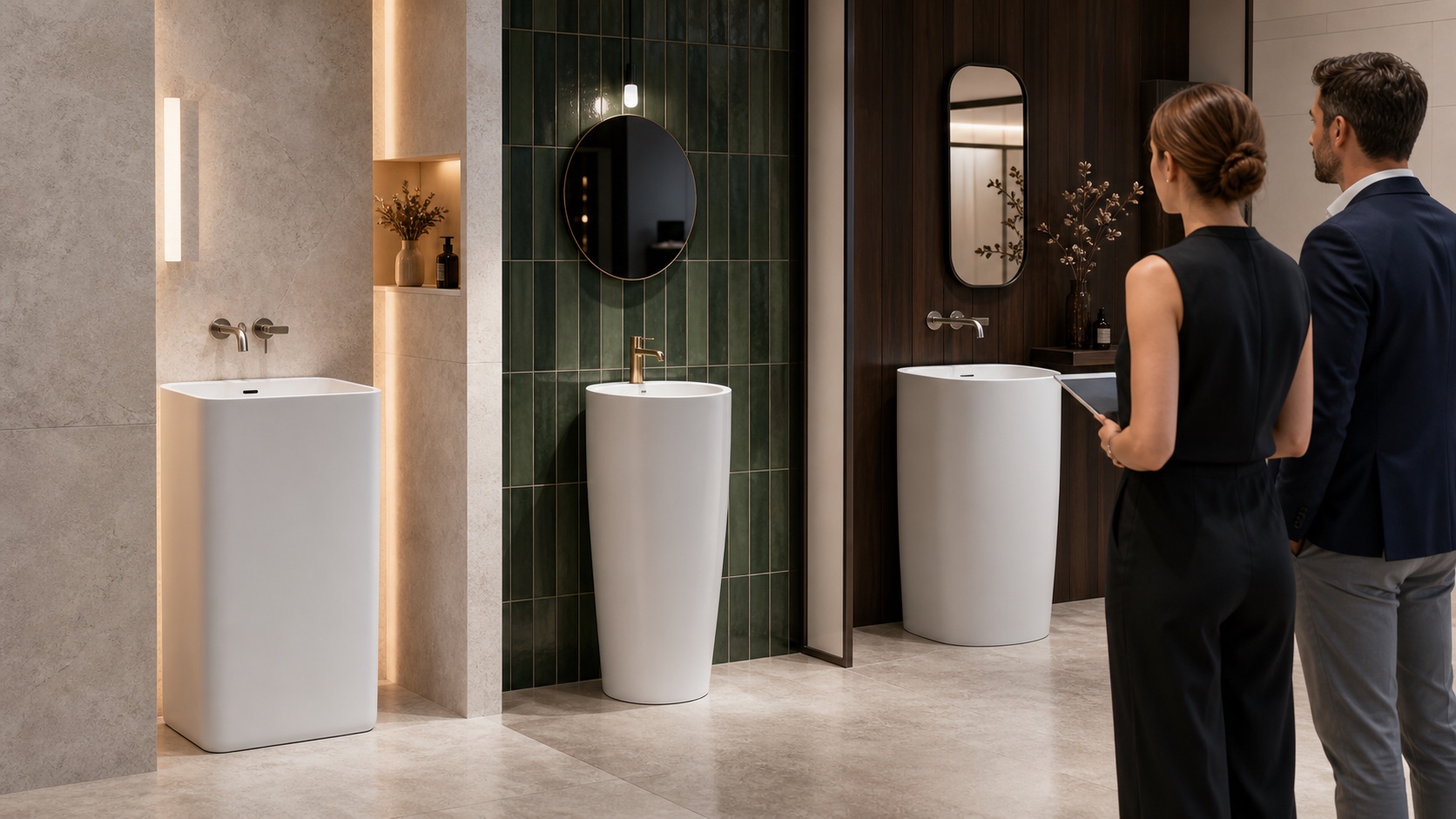

They suit design-led hotel washrooms, restaurants, reception bathrooms, villas and premium retail displays where the basin can act as a visible object. Compact models can help small powder rooms feel less filled than a solid cabinet. Wider forms can offer more wash area while keeping a sculptural appearance.
The trade-off is storage and hidden services. A vanity cabinet provides drawers and can conceal a broader plumbing zone. A pedestal basin leaves the room visually open but demands more disciplined rough-in. Compare room function, cleaning routine, spare access and user needs, not only the interior-design concept.
For a mixed project, use pedestal basins selectively in public or feature rooms and coordinated vanity basins in bedrooms that need storage. Build a model schedule with room type, basin SKU, tap, waste route, fixing kit and finish. Our wall-hung vs pedestal basin guide covers the wider format choice.
07 QUALITY CONTROL
What should buyers inspect on pedestal basins?
Check overall height, width, projection, bowl and drain position, floor contact, vertical alignment, rear opening, tap and overflow openings, glaze coverage and surface appearance. Stand the basin on a flat inspection plate and check rocking. Use the installation jig to verify that production units accept the specified trap, valves and hoses.
Tall ceramic bodies need close visual inspection under side light. Look for distortion, uneven wall-side lines, glaze variation, pinholes, cracks and repaired damage. Confirm that the bowl holds and drains water correctly and that the overflow works when provided. Compare white colour and gloss across units that will be installed in the same room.
For two-piece pedestal suites, assemble random basin and pedestal combinations from different cartons to detect fit variation. For monolithic models, check internal access and safe lifting points. Keep measurement methods and defect limits in the inspection file; “same as sample” is useful only when the signed sample is available and representative.
08 PACKING & ORDER CONTROL
How should freestanding pedestal basins be packed and ordered?
Specify the visible and hidden system
1. Product format. 2. Model and drawing revision. 3. External size. 4. Waste route and centre. 5. Water-supply positions. 6. Tap type. 7. Overflow and waste fitting. 8. Trap envelope. 9. Fixing kit. 10. Installation sequence. 11. Finish and signed sample. 12. Spare fittings. 13. Carton and handling method.

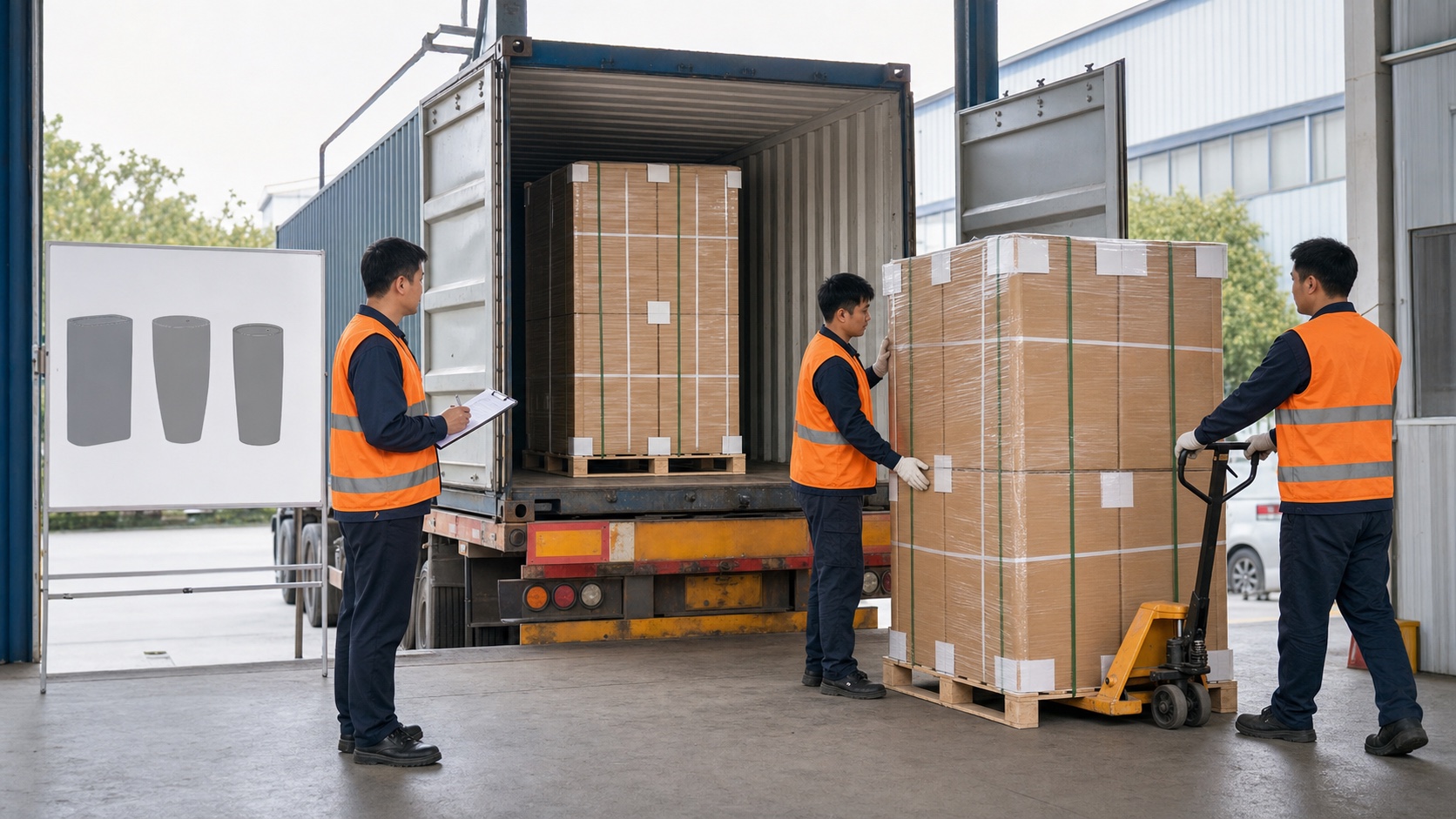

A tall pedestal basin has a different centre of gravity from a low countertop bowl. Packaging must support the bowl, body and base without point-loading a thin edge. Mark and validate the intended carton orientation. Provide safe manual-handling guidance for models that require two people.
During pre-shipment inspection, open random cartons, check accessories, stand products on a flat plate and trial-fit selected units to the plumbing jig. Confirm pallet restraint and container loading so cartons cannot fall into empty spaces. Link each basin model to the correct tap, waste and fixing kit.
Chengda’s PB range includes compact round, rectangular and wide freestanding pedestal basins for importers, retailers and projects. Send the room plan, target dimensions, rough-in, tap choice, finish, market and quantity. We can prepare model options, samples, technical checks, coordinated fittings and export packing.
A successful pedestal basin project begins behind the ceramic: exact rough-in, reachable fittings, stable installation and protected delivery make the sculptural design work in real rooms.
FAQ COMMON QUESTIONS
Frequently asked questions
What is a freestanding pedestal basin?
It is a floor-standing washbasin whose ceramic body or pedestal creates a vertical column to the floor. Modern models may be one-piece monolithic forms, while classic pedestal basins use a separate basin and pedestal.
Does every pedestal basin use the same wall rough-in?
No. Waste direction, supply location, trap space, tap configuration and access vary by model. Use the exact approved drawing and a real dry-fit.
Can a freestanding basin use a wall-mounted tap?
Some models can, but the tap arrangement must suit the basin and project. Other models use a tap hole in the ceramic or a floor-mounted tap. Confirm spout reach, height and service access.
Is a pedestal basin suitable for small bathrooms?
A compact column basin can reduce visual bulk, but buyers must check actual width, projection, user clearance and door swing. Storage is usually more limited than with a vanity cabinet.
How is a freestanding pedestal basin fixed?
The method depends on the product. It may include floor anchors, wall restraint, sealant and specific brackets. Follow the model instructions and verify the substrate before installation.
What should importers inspect before shipment?
Inspect dimensions, level contact, bowl and drain geometry, glaze, tap and overflow openings, access cavity, stability, fittings, carton protection and a trial installation on the approved rough-in jig.
